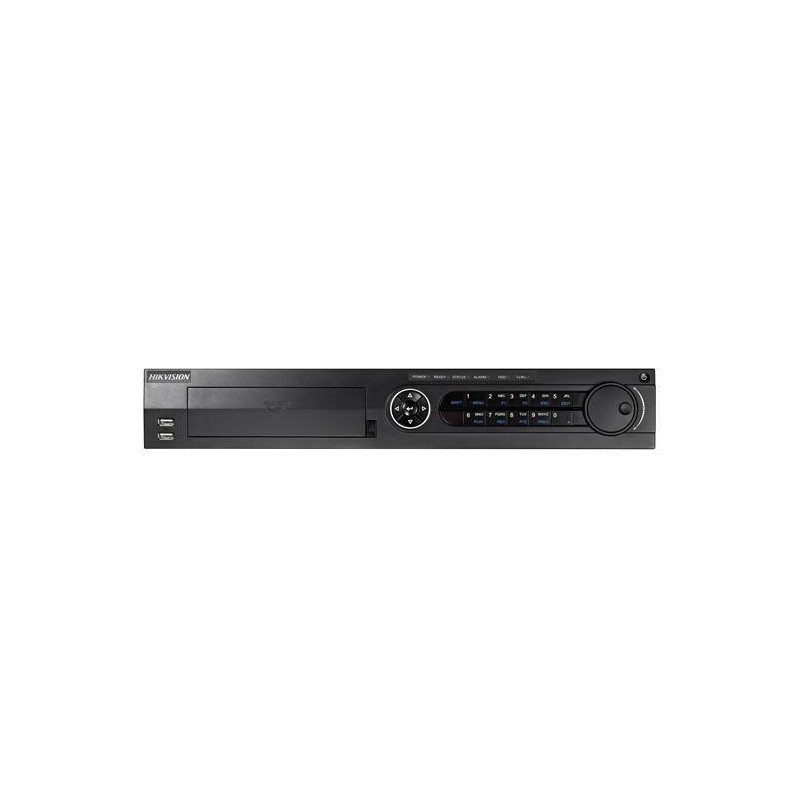

DVR DS-7316HUHI-F4/N

DVR HIKVISION DS-7316HUHI-F4/N

  • DVR 16 canale Hikvision TurboHD 3.0 4K ,
  • compresie H264+, inregistreaza 16 camere video supraveghere HIKVISION TurboHD la rezolutie Full HD
  • functioneaza cu camere video supraveghere:

-Hikvision TurboHD de pana la 3Megapixel 15 fps, 2 MegaPixel 25fps,

-AHD 1.3 MegaPixel 12fps,

-analogice

-si 2 pana la 18 camere Hikvision IP de pana la 8 MegaPixel (pana la un total general de 18 camere TVI+IP)

  • cablare cu cablu coaxial de pana la 500metri (pentru camerele TurboHD si AHD), se folosesc conectori BNC
  • gestioneaza 4 HDD SATA HOTSWAPP de pana la 6TB fiecare, neincluse, RAID 0,5,6,10, eSATA
  • vizualizare inregistrari simultan 16 camere video, 1X AUDIO IN,
  • comanda camere mobile speed dome Hikvision TurboHD cu comanda pe cablu coaxial (protocol Coaxitron),
  • VideoContent Analytic: line crossing, intrusion detection 16 canale,
  • iesire video 4K UltraHD FullHD 4K (3840 × 2160), HDMI2:1080p VGA IMAGINI EXCELENTE, CVBS out (imagine independenta),
  • 1 RS-232 serial interface, Alarm I/O 16/4, full-duplex, 1 RS-485 keyboard interface, 1 USB 3.0 si 2 USB 2.0, 2x 10M/100M/1000M self-adaptive Ethernet interface
  • Utilizeaza simultan camere analogice clasice, HIKVISION TurboHD, AHD si 2 pana la 18 camere IP HD HIKVISION.
101280524A03360215310010

Fisa tehnica

Tehnologie AHD+TVI+ANA+IP
I/O 16
Tip echipament Stand alone
Nr. canale IP 2
Rezolutie/canal IP 8MP
FPS max/ canal/IP 25
Iesire video HDMI+VGA+VC
Iesire alimentare POE Nu
PTZ Da (Coaxitron HIK)
Audio 1
Nr. HDD 4
Playback mobil Da
Contine HDD Nu
Nr. canale analogice 16
Rezolutie/canal analog 1080P(FuLL HD)
FPS max/ canal/analog 25
